New 230V 3.6KVA Bearing induction heater Machine Device for Shaft Fitting and mounting
$1,580.00
Discount
GET $50.00 OFF ON ORDERS OVER $500.00
Bearing Induction Heater 3.6 KVA 220V
——— Bearings Mounting and dismounting
———-MOTOR Maintaince Tools
|
POWER |
3.6 |
|
VOLTAGE |
220V |
|
CURRENT |
16A |
|
FREQUENCY |
50 / 60Hz |
|
VOLTAGE VARIATIONS |
110V/380V Optional |
|
AUTO DEMAGNETIZATION |
YES |
|
PROPER BEARING Inner Diameter |
DIA > 30mm |
|
MAX BEARING Out Diameter |
500 mm |
|
MAX BEARING WIDTH |
140 mm |
|
MAX BEARING WEIGHT (Kg) |
40 |
|
OTHER WORKPIECE (Kg) |
25 |
|
TEMPERATURE DISPLAY |
0-240 degree C |
|
TIME DISPLAY |
99min 59second |
|
DIMENSION |
32¡Á32¡Á32 cm |
|
TOTAL WEIGHT |
38 Kgs |

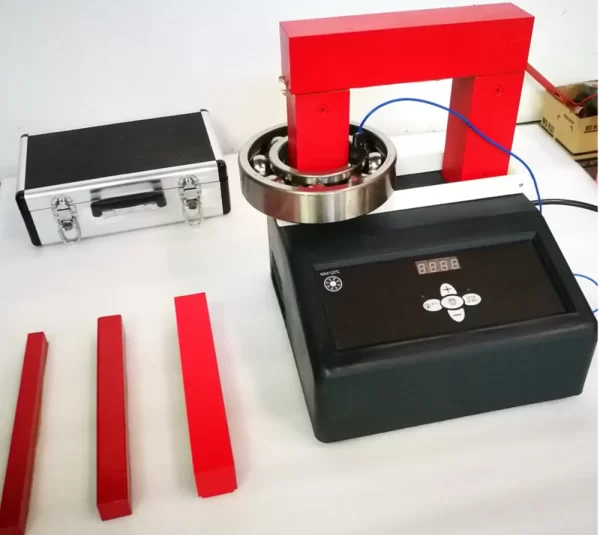

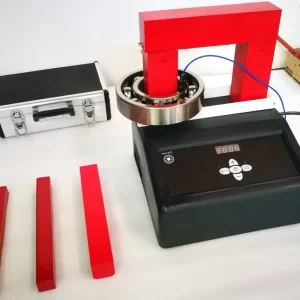

Accessories come with bearing induction heater DX-3.6
-
Heating Yokes 4 pieces
(20x20x270mm, 30x30x270mm, 40x40x270mm, 60x60x270mm)
-
Temperature Probe ( 1 piece K type)
