Hand Held Magnetic 2KVA 100kHz 220V Electromagnetic Induction Heater Coil Cable For Bolts Flameless Heater Tools
$436.99
Discount
GET $50.00 OFF ON ORDERS OVER $500.00
EMAGIH EU READY Hand Held Magnetic 2KVA 100kHz 220V Electromagnetic Induction Heater Coil Cable For Bolts Flameless Heater Tools
EMAGIH 2 KVA Handheld High Frequency Handheld Mini Induction Flameless Heater
Specifications
Input Voltage (V) |
220-240V 50/60HZ |
Rated Output Power |
1360 Watts/100KHZ/16V/85A |
Rated Current Consumption (A) |
7 A |
Time request heating up to 800 C |
5-40 Seconds depends on the workpiece |
Continue heating time |
3-5 minutes |
Induction Heater application for:
1. Seized Nuts or Bolts on the Car service, bolt, farm equipment repair purpose.
2. Straighten small hail and other similar dents without painting paint layer without breaking the car, Removal of Strip on auto body parts when you restore or straightening.
3. Burning silent blocks, pressed on beams running gear or other machinery and equipment.
4. Heat treatment of metal parts, hardening, tempering, normalizing.
5. Pressing bearings on a hot landing, as well as flowability.
6. Snyatie small laminated glass sealants for metal.
7. Removing glued on painted metal spoilers, moldings, stickers.
8. The heating of the surface of the hood or other surfaces to be coated vinyl.
9. Removing rust from metal and car body by high-speed heating parts, and flaking rust.
10. Removing paint coating to a metal surface or body cars.
11. Annealing small size of bronze cartridges housing.

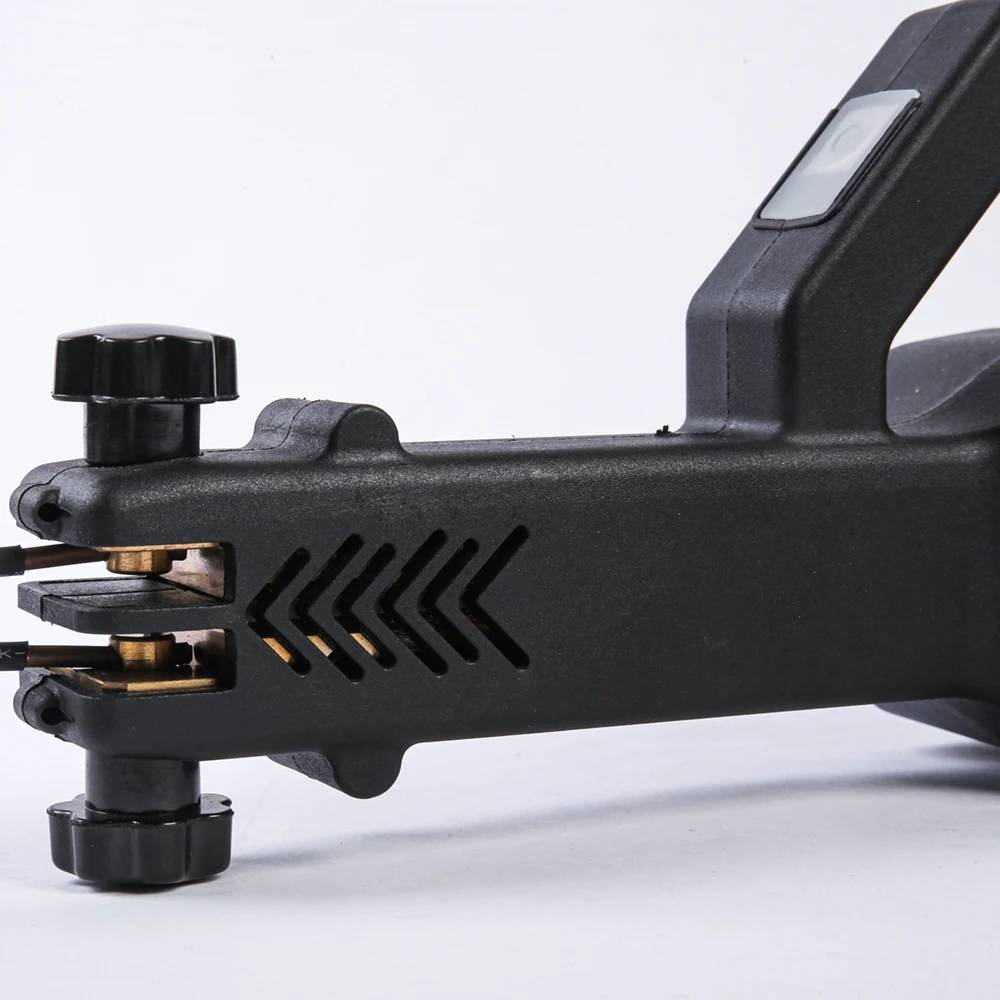

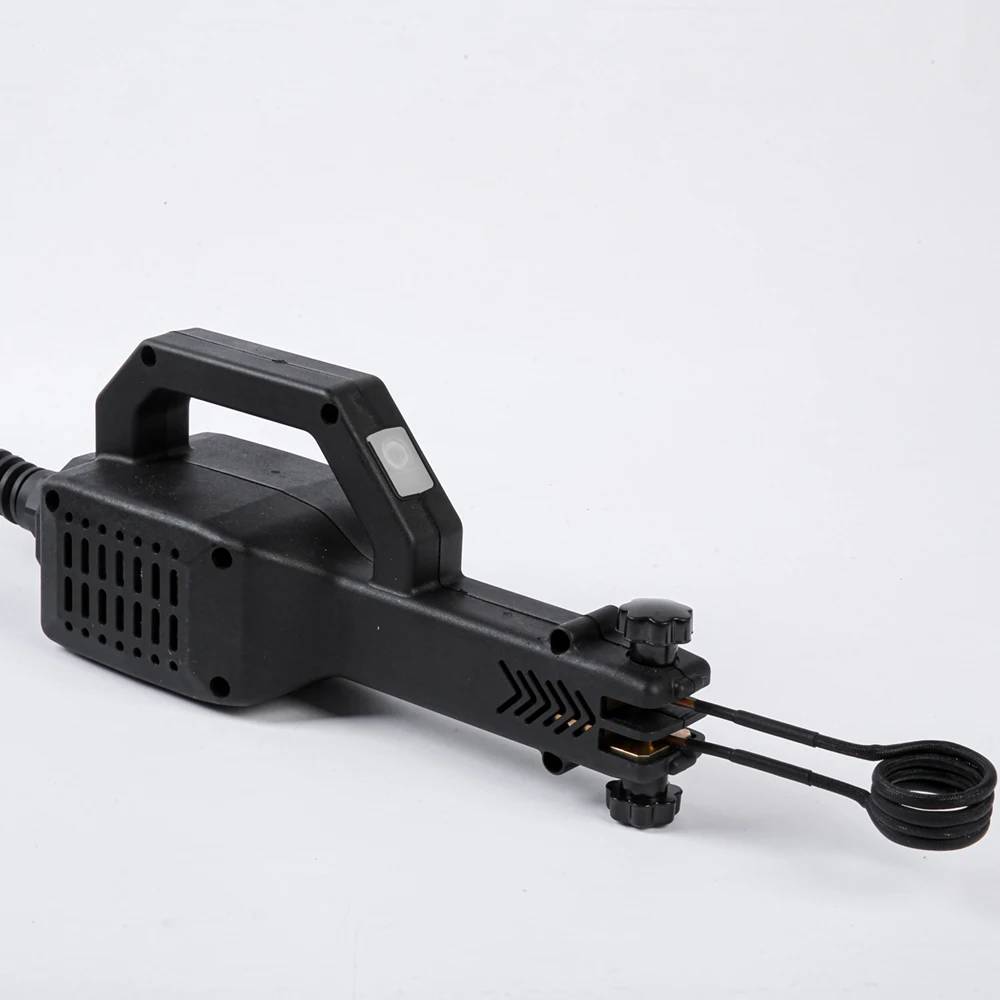

This kind of design of coil connector is both ok for air cooling and water cooling type coil.

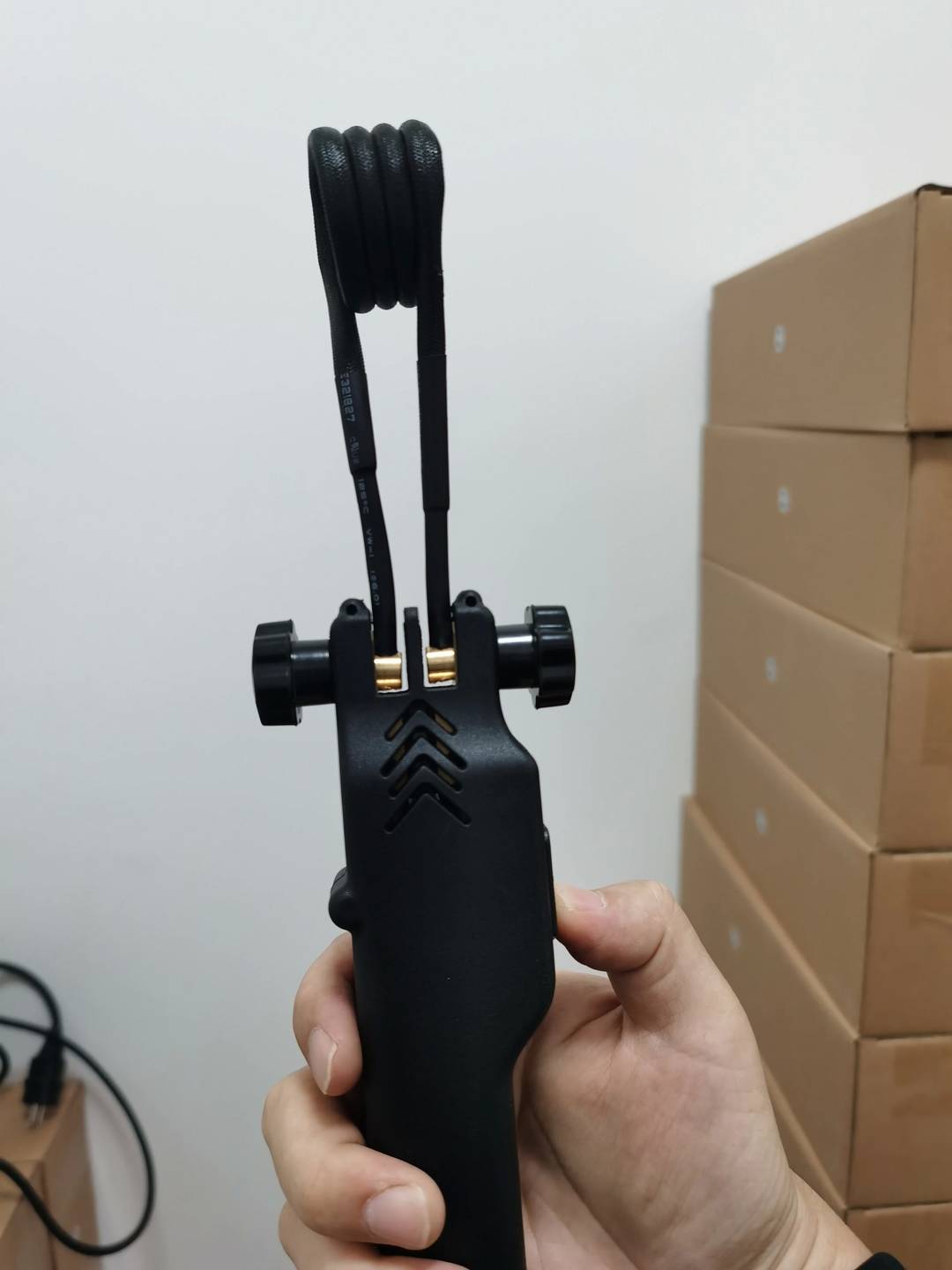

–Air cooling coil inductor, Copper leads diameter request 3mm to 5mm.

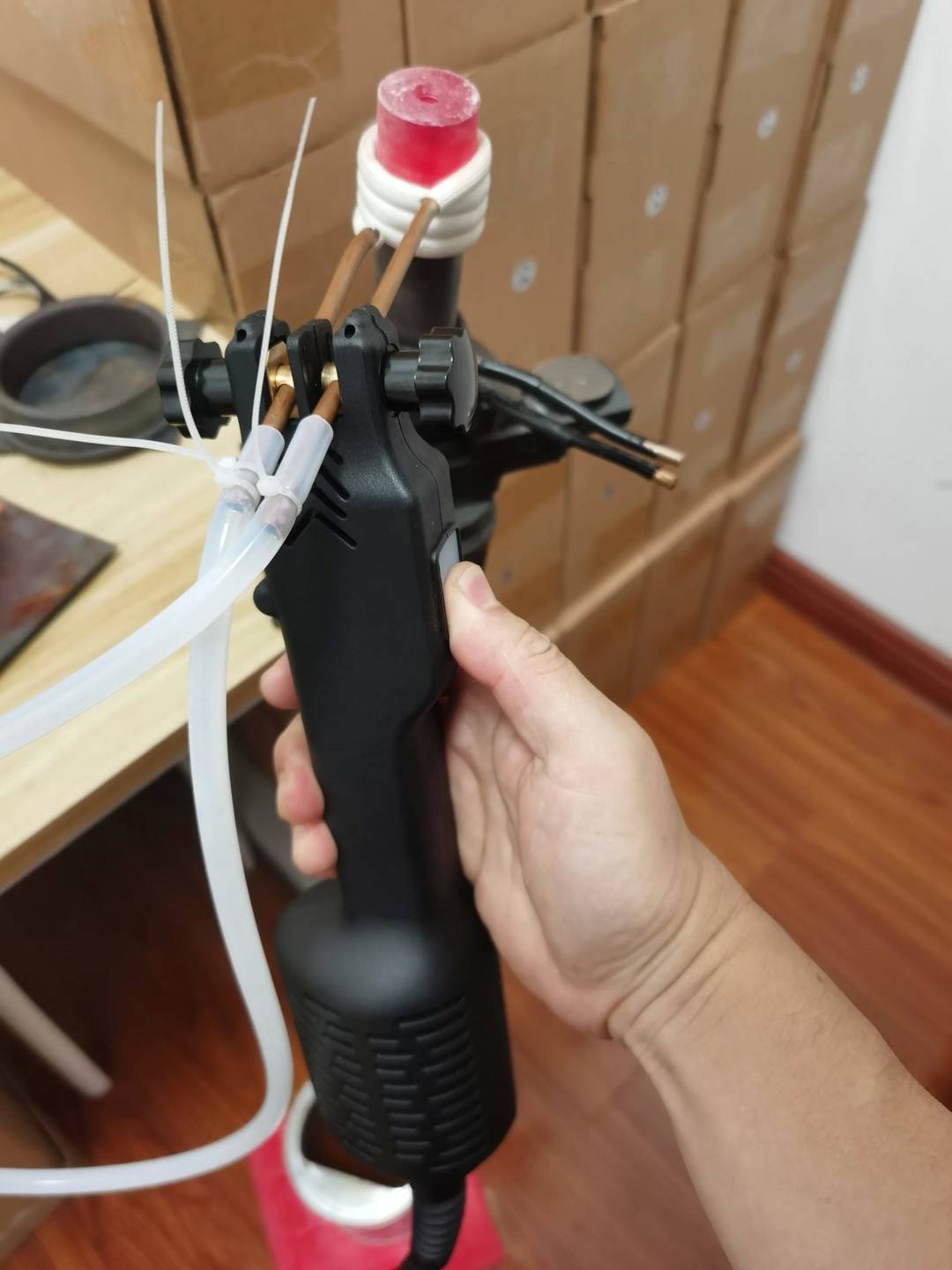

–Water cooing Copper pipe outer diameter max 5mm requested.
In this extend function, the heater with water coil cooling would working time a bit longer than air cooling, water can take away the thermal that help the transformer working longer before overheat protected.

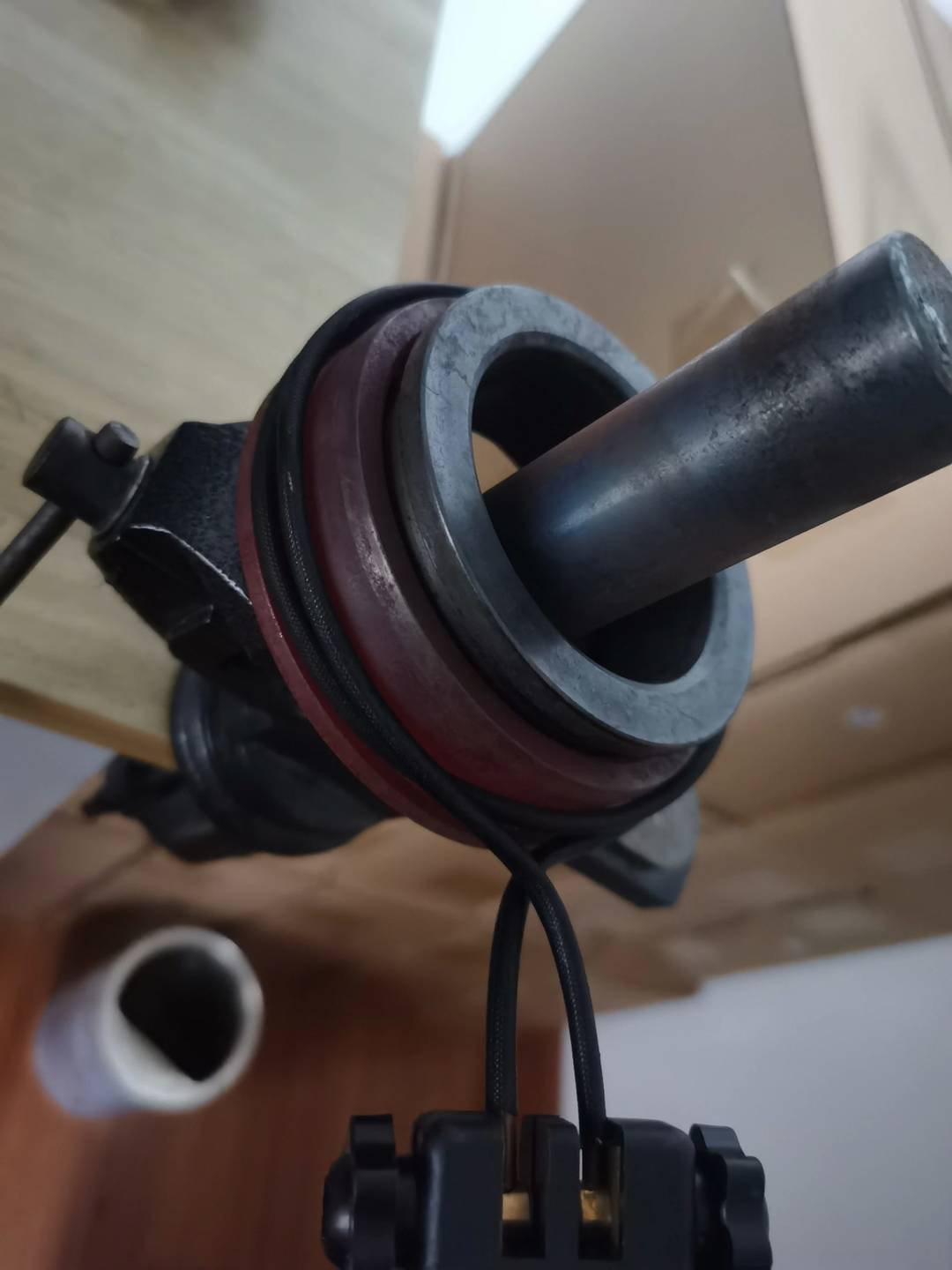

The IH-2000 Emagih Induction heater heater could heating the bigger size round type workpiece such as Bearing, Gearing, Sleeves for Mounting purpose. (not for dismount, dismount request high speed heating and bigger power)
operator could make the coil based on the request dimension by themselves in two turns.

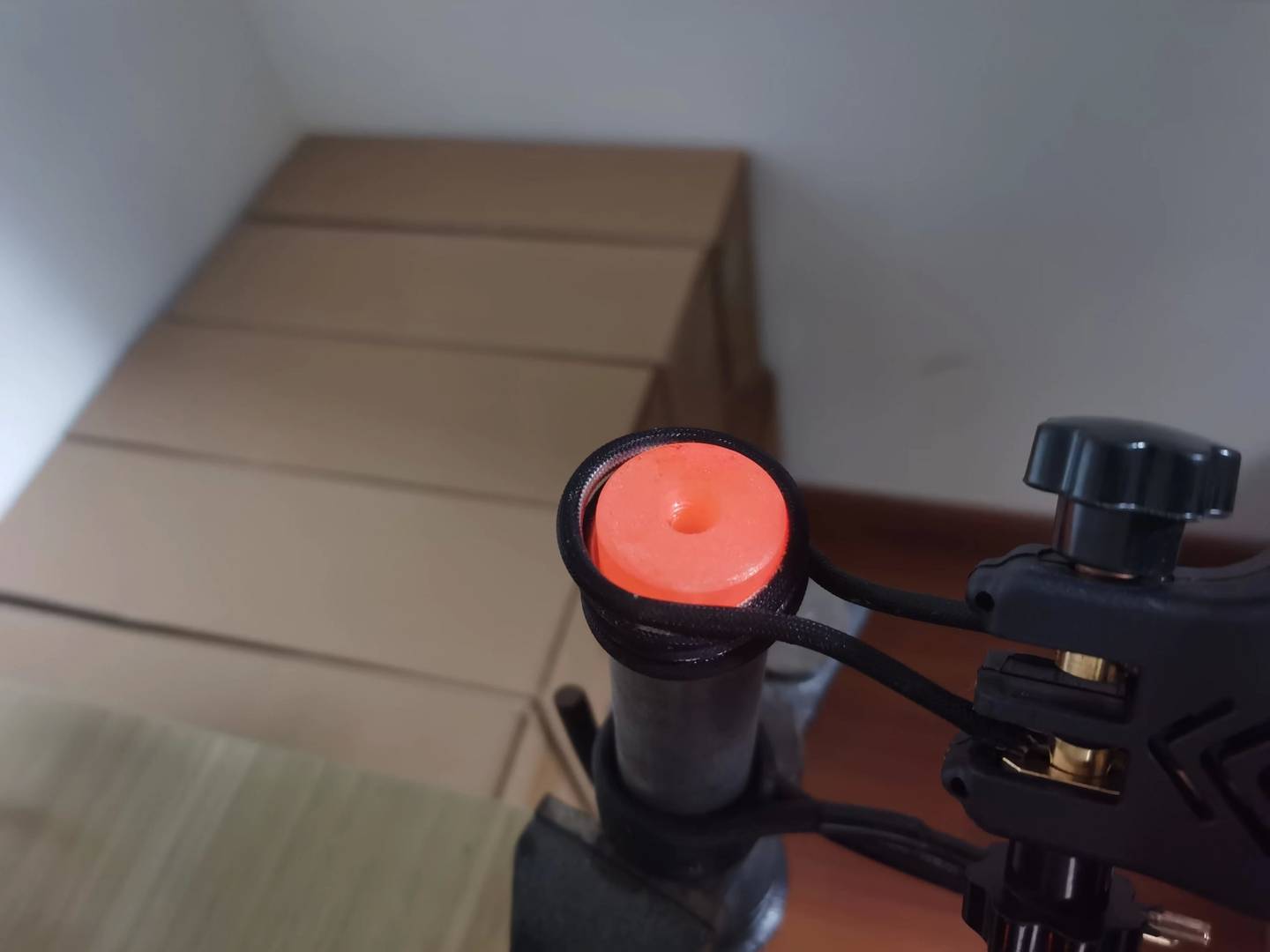

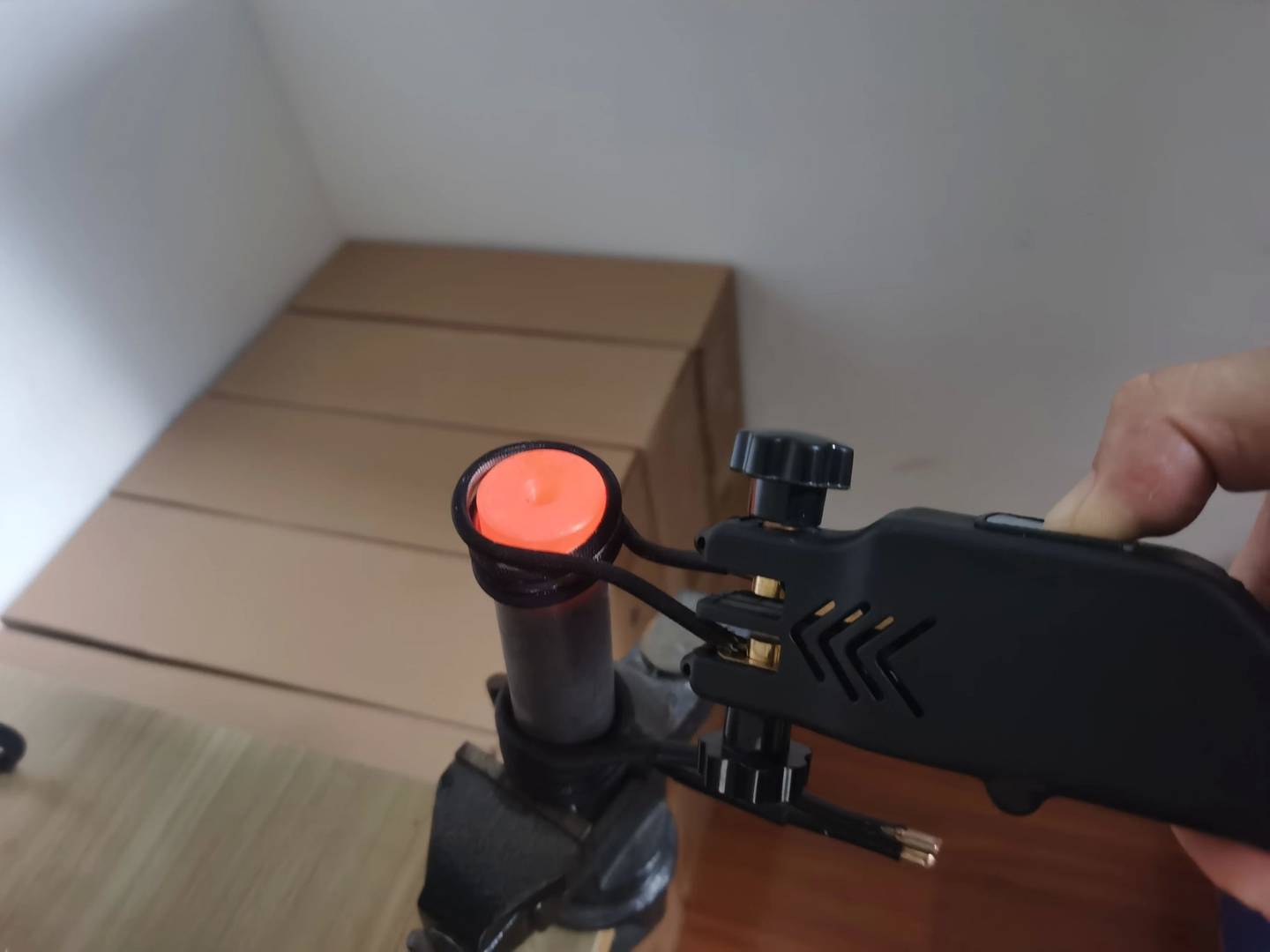

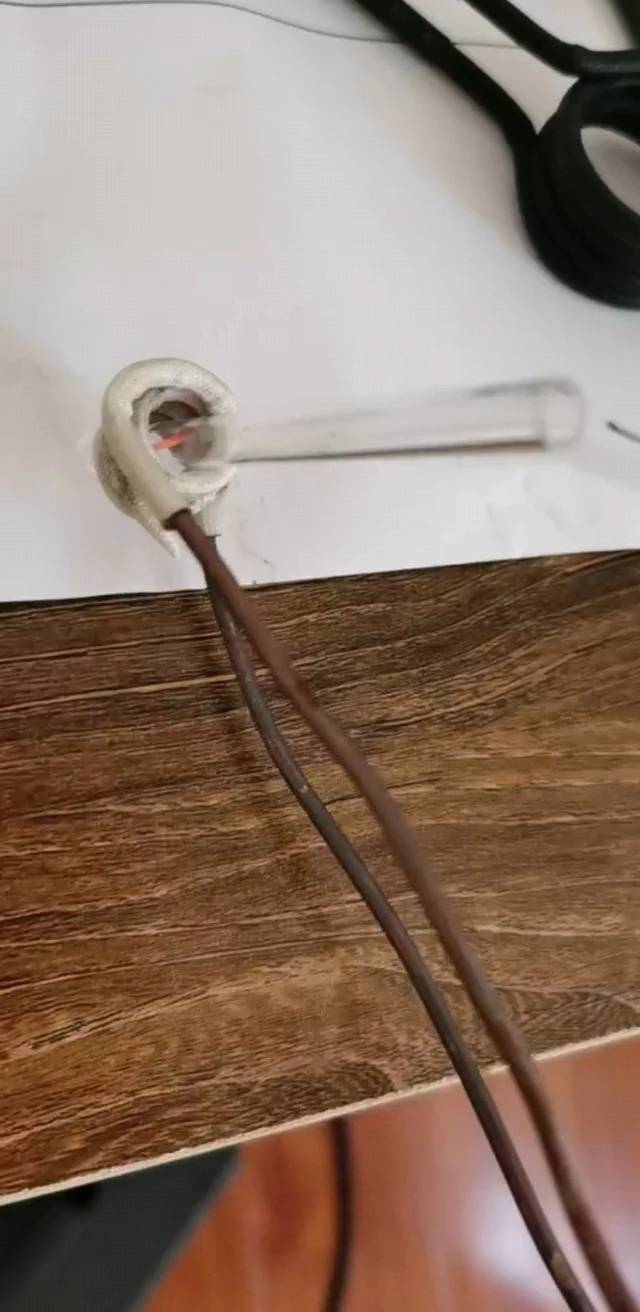

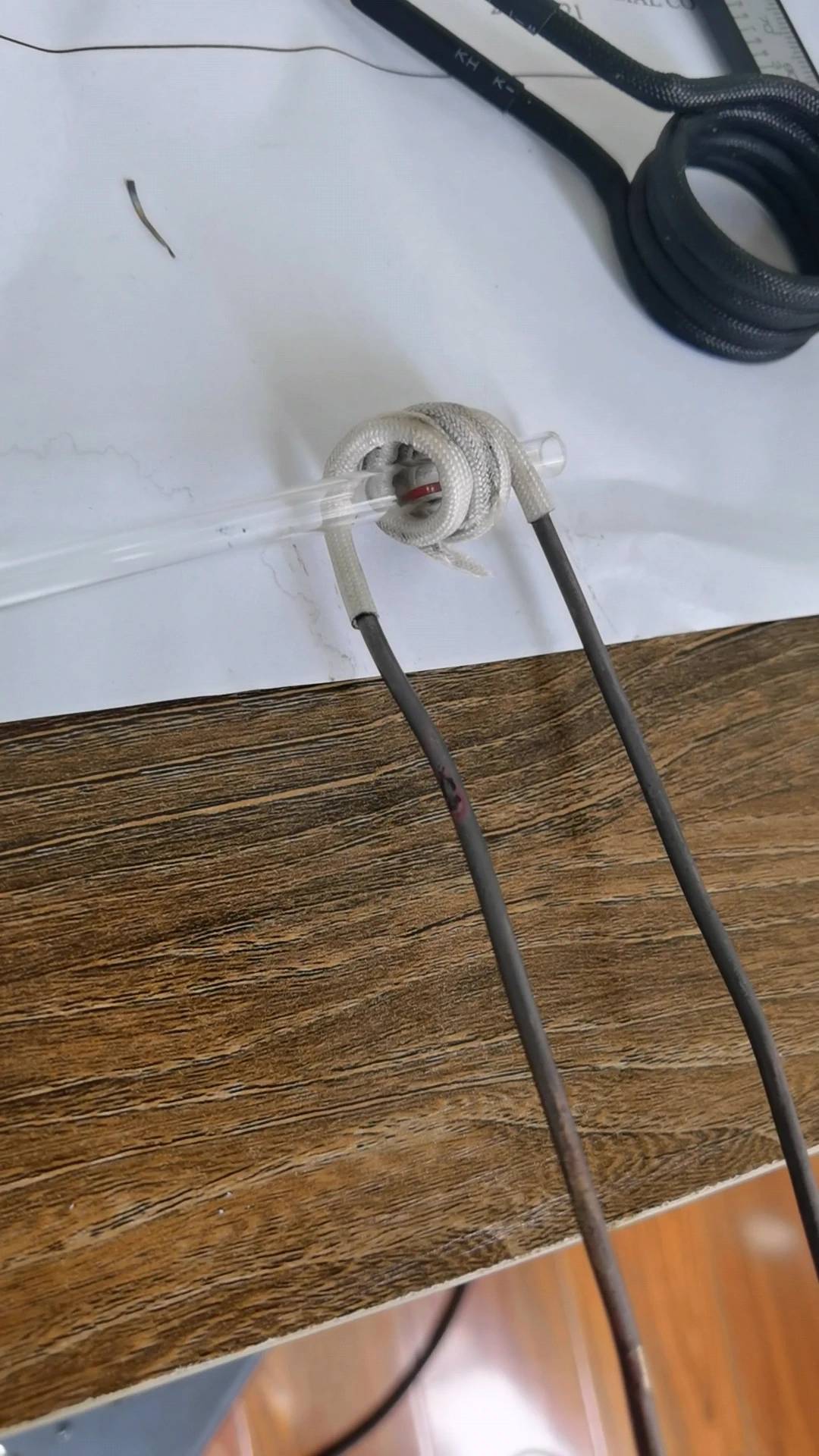

For this kind of emagih heater working frequency 100KHZ, so that it could also heating some tiny workpiece color into red.
It has better formance than 1000W model in 60khz as compared.

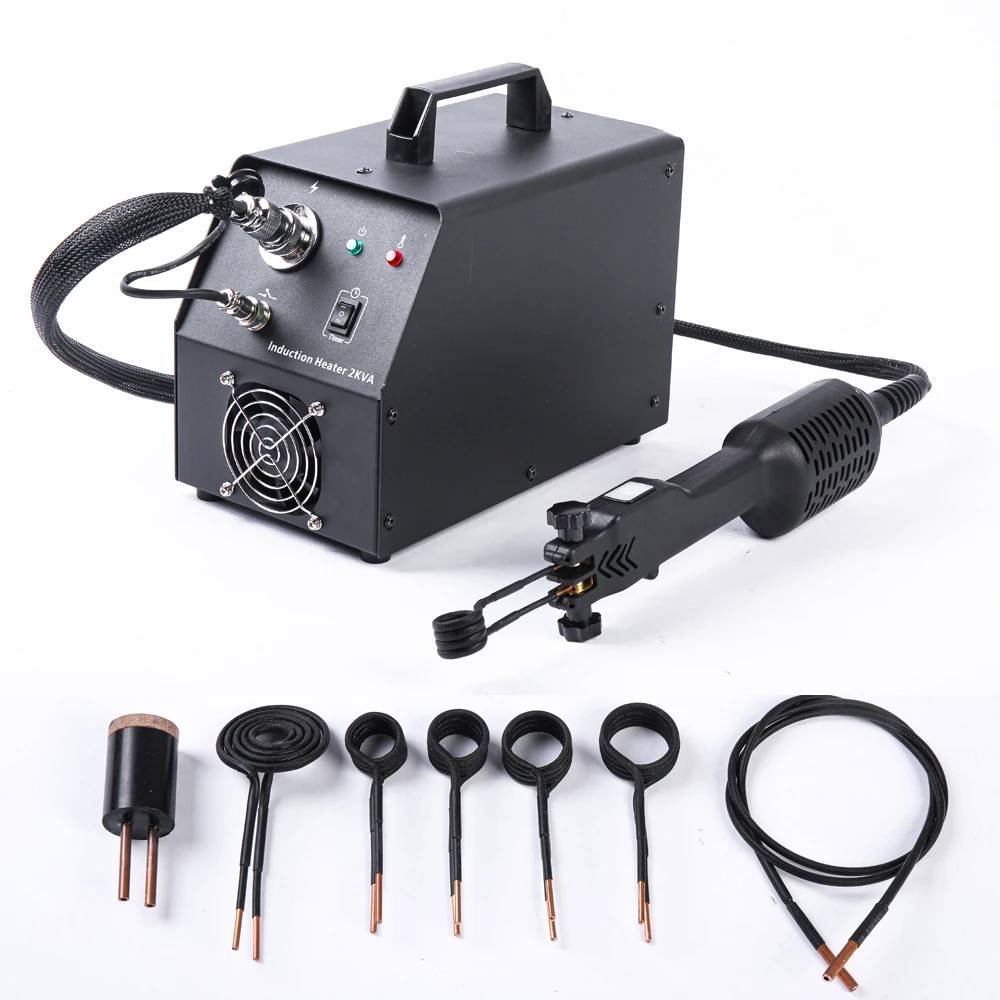

The accessories come with Mini Induction heater.
2 pieces of coil for inner diameter 20mm
2 pieces of coil for inner diameter 28mm
1 Pc Soft Cable wire Length 92 CM and Diameter 3mm. for DIY
1 Pc of Dent repair inductor.
Non work for copper/aluminum tube brazing or soldering job.
