6KW Cheap Induction Heat Treating Equipment Plastic Injection Machine Induction Heater
¥384.84
Discount
[new_user_coupon_discount_and_code]
Technical Parameters
?
|
Item |
Technical Parameters |
|
rated power |
Single-phase |
|
Rated input current |
6KW (20-22A) |
|
Rated output current |
6KW (20-30A) |
|
Rated voltage frequency |
AC 220V/50Hz |
|
Voltage adaptation range |
100V ~ 260V, constant power output at 210 ~ 260V |
|
Adapt to ambient temperature |
-20?C~50?C |
|
Adapt to environmental humidity |
¡Ü95% |
|
Power adjustment range |
20% ~ 100% stepless adjustment(That is: adjustment between 0.5 ~ 5KW) |
|
Heat conversion efficiency |
¡Ý95% |
|
Effective power |
¡Ý98%(Can be customized according to user needs) |
|
working frequency |
5~40KHz |
|
Main circuit structure |
Half-bridge series resonance |
|
Control System |
DSP-based high-speed automatic phase-locking tracking control system |
|
Application mode |
Open application platform |
|
monitor |
Programmable digital display |
|
start time |
<1S |
|
Instantaneous overcurrent protection time |
¡Ü2US |
|
Power overload protection |
130% instantaneous protection |
|
Soft start mode |
Fully electrically isolated soft start heating / stop mode |
|
Support PID adjustment power |
Identify 0-5V input voltage |
|
Support 0 ~ 150 ?C load temperature detection |
Accuracy up to ¡À 1 ?C |
|
Adaptive coil parameters |
6KW 10 square line, length 13m, inductance 65uH |
|
Coil to load distance(Thermal insulation thickness) |
20-25mm for circle, 15-20mm for plane, 10-15mm for ellipse and within 10 mm for super ellipse |
|
rated power |
Single-phase 6KW |

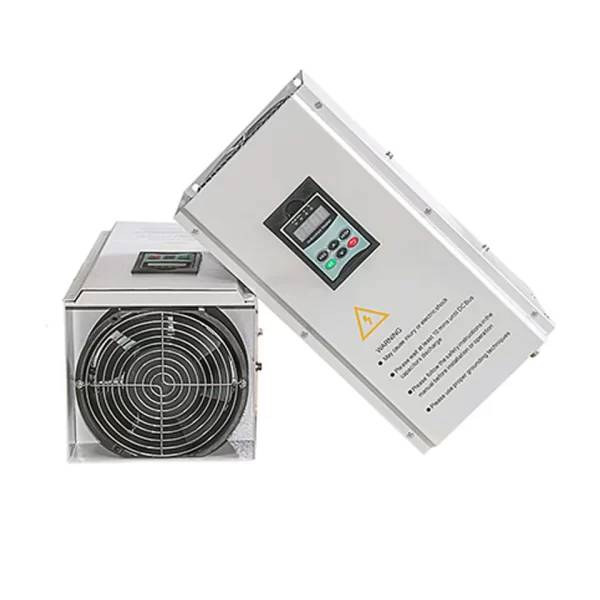

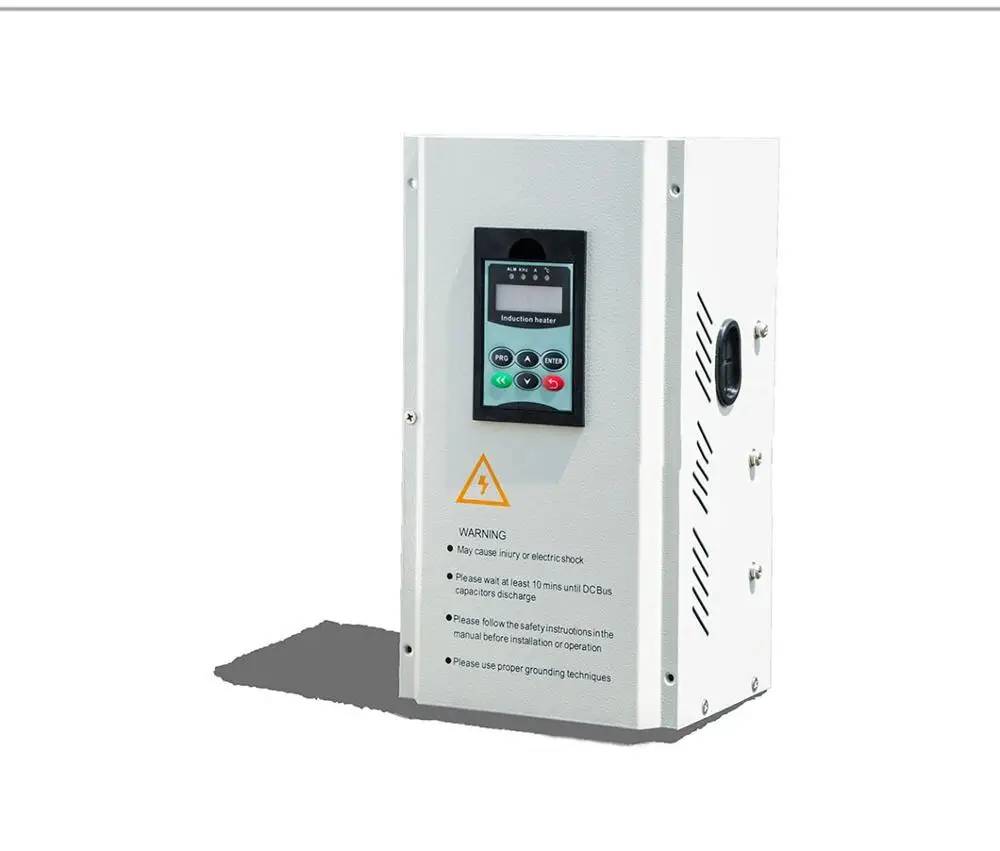

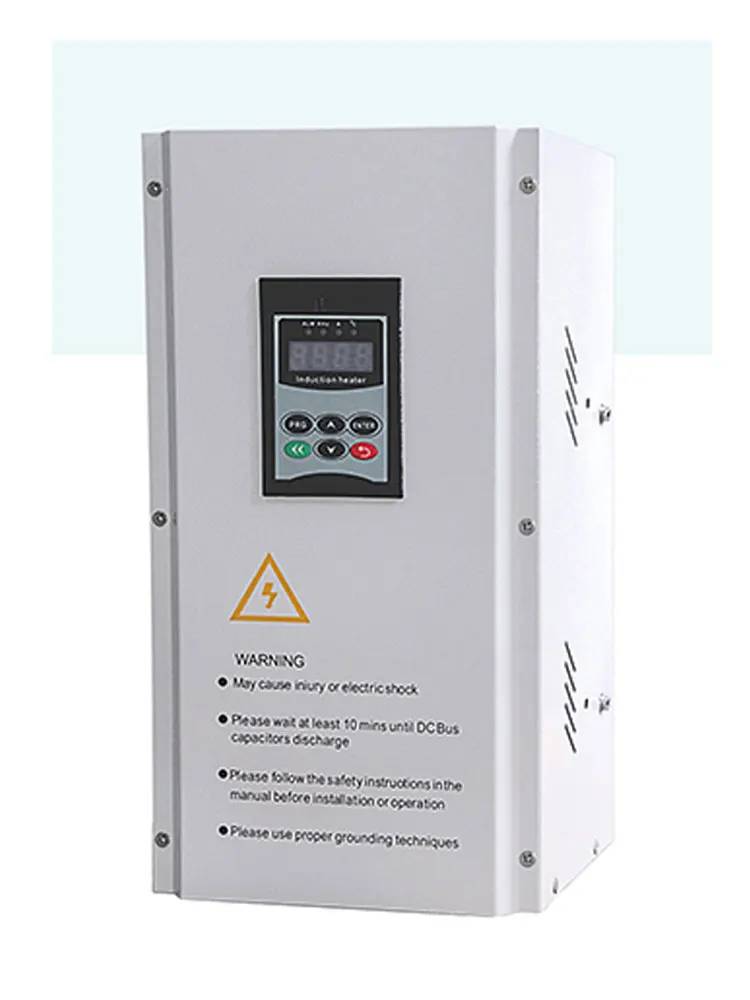

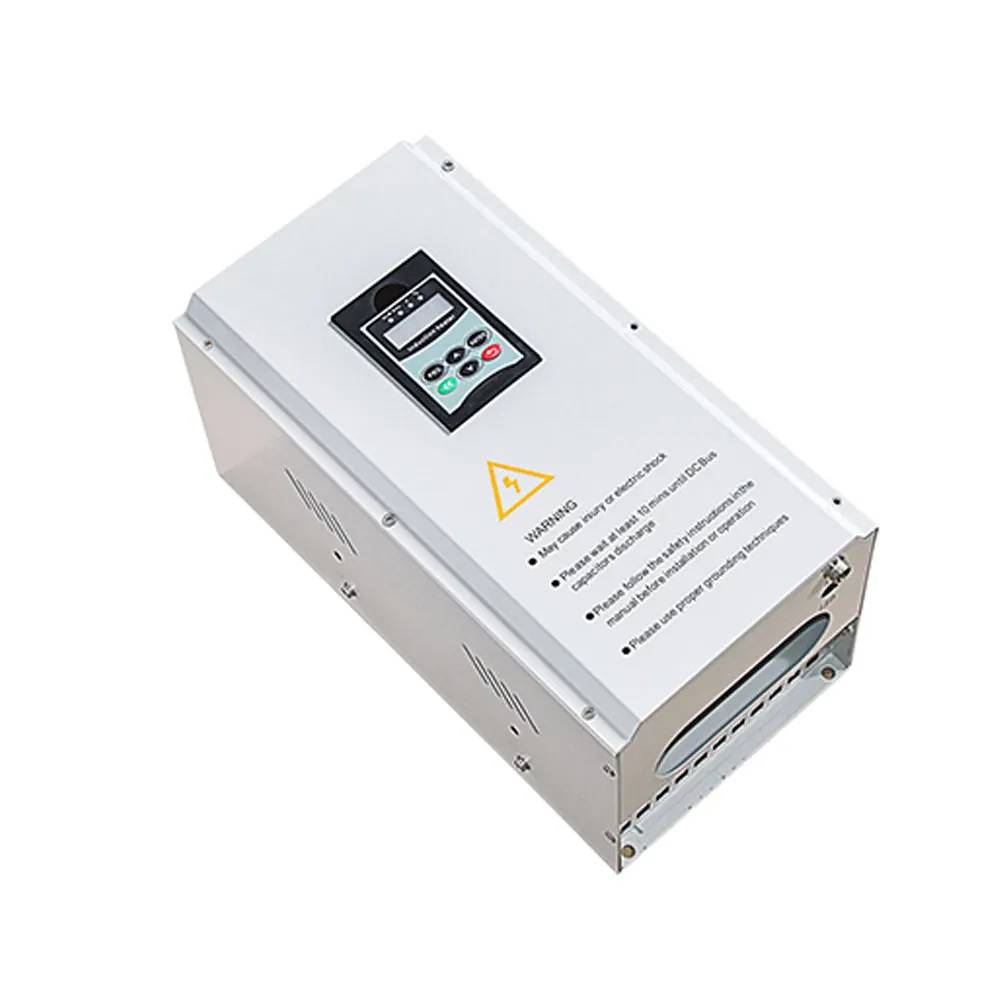

6KW 220V digital electromagnetic heating controller is a multi-purpose high-efficiency heating and energy-saving product. It has significant power saving effects, fast heating speed, high thermal efficiency, and lower production environment temperature. This product adopts the company’s fifth-generation digital processing platform technology, an embedded 32-bit processing system, and full digital phase-locked tracking processing. The motherboard has rich interfaces and supports the standard modbus RTU communication protocol, which can easily realize touch screen man-machine dialogue and remote control. In addition, it has the advantages of fast tracking speed, high precision, strong adjustability, strong coil adaptability, easy installation, and simple debugging. It can be widely used in high-efficiency heating equipment such as plastic machinery, food machinery, and commercial induction cookers.
FAQ
Q: Is it easy for a new operator ?
A: Yes, this device easy operate and you will love it!
Q:Can I watch the heating test video before place order ?
A: Yes, you can!
Q: Do you have any Certification for entry EU market ?
A: We have CE certification, you can chat with me and get it.
Q:I see the price is including shipping cost. which Express you are use?
A: Shipping to EU market, we usually use DHL HK
Shipping to Russia Market, We usually use EMS
Shipping to Mid-east, we usually use DHL HK or Aramex.
We use all Express hopefully you can get goods within one week after place order and safety delivery.
More other question, you can leave me message
