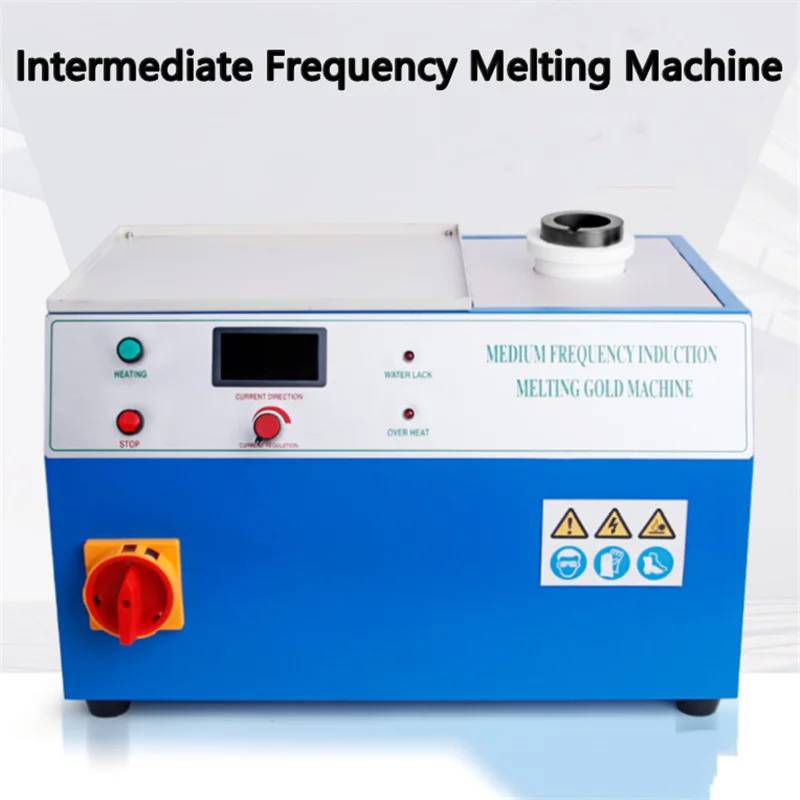

2KG Medium Frequency Induction Heating Furnace Melting Silver Copper Metal Melting Gold Melting Furnace Equipment

2kg Intermediate Frequency Gold Melting Machine, Gold Melting Furnace, Gold, Silver, Copper and Aluminum Smelting Furnace

This machine adopts high-pressure intermediate-frequency induction heating and melting method, which can not only heat quickly, but also electromagnetically stir the metal to obtain molten metal with highly uniform temperature and composition. The machine has the characteristics of simple operation, convenient maintenance, reliable quality, and safe production. It can be used not only for broken large gold nuggets, but also for mixed gold alloys. It changes the phenomenon of large noise, high risk, gold splashing, and large loss caused by the existing artificial gas for gold financing. At the same time, the intermediate frequency is harmless to the human body.

Applicable to: gold, silver, K gold, copper, aluminum, etc. (Platinum is not applicable)

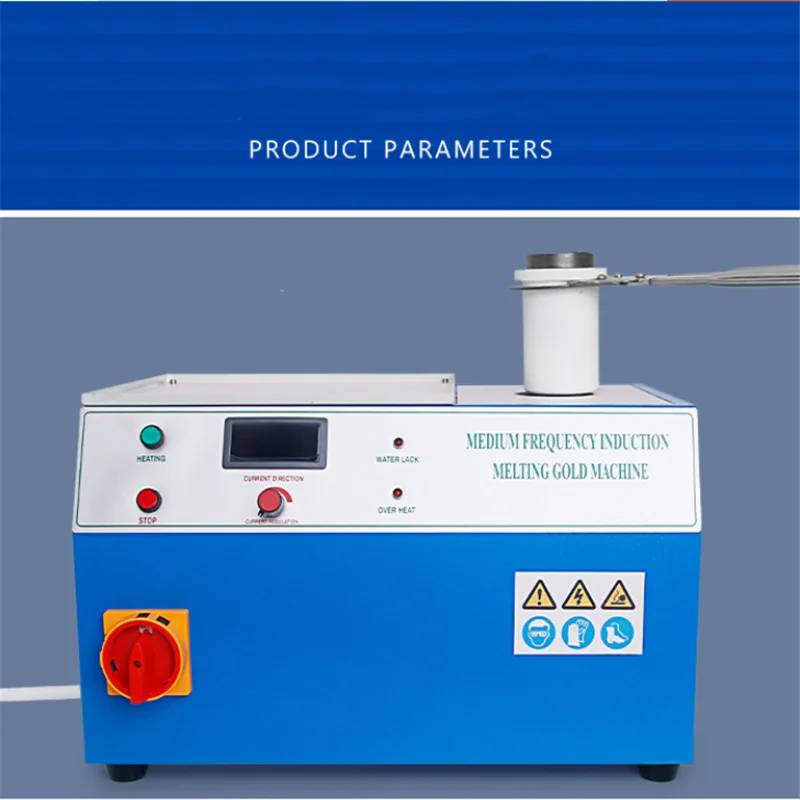

Machine information:

Output Power: 3.5KW

Power Supply: 220V/50/60Hz/Two Phase

Smelted Metals: Gold, K Gold, Silver, Copper

Maximum Capacity :2kg

Smelting Time :4-6 Minutes

Maximum Temperature :1450¡æ

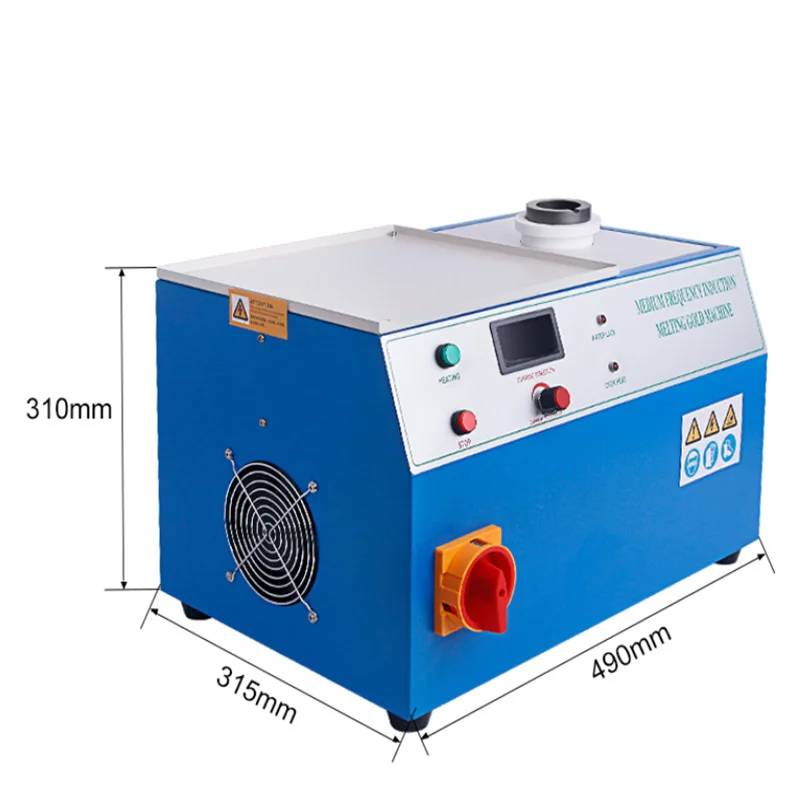

Size: 490¡Á315X310mm

Weight: approx 21KG

Notice:

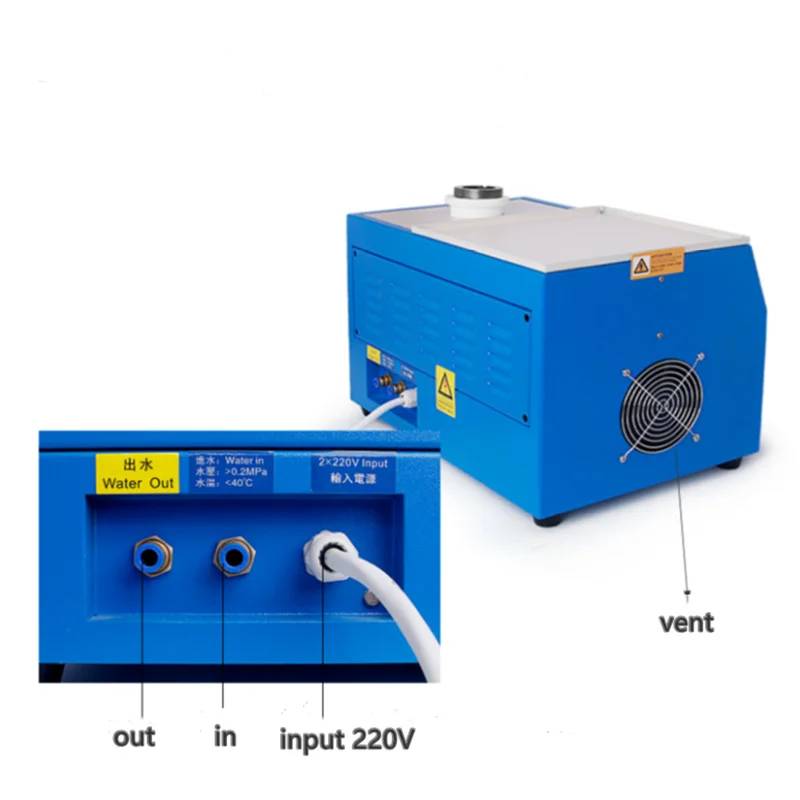

1. It is strictly forbidden to cut off the water supply when the machine is working. If there is no water, remove the crucible immediately to avoid damage to the crucible.

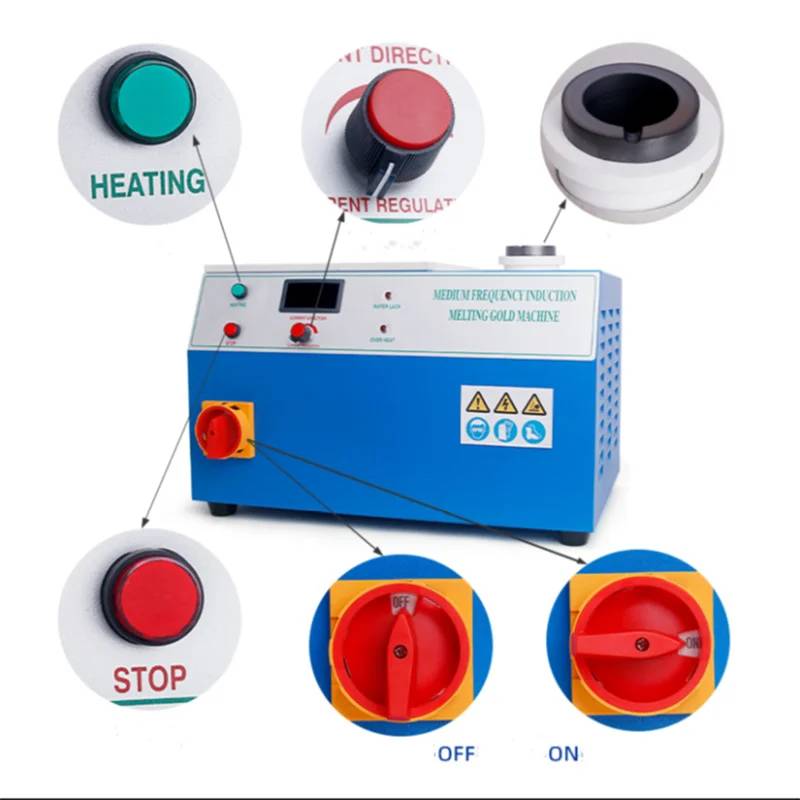

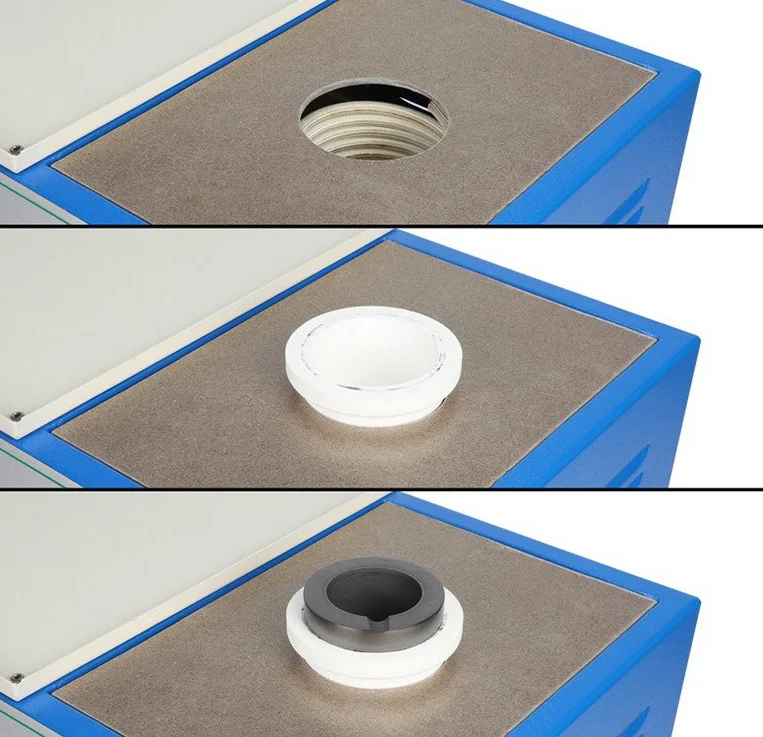

2. If there is no crucible in the machine, do not press the heating switch .

3. After melting the material, press the stop switch, and then empty the material.

4. Before turning off the machine, remove the crucible and keep the machine running for 15 minutes to cool down. Then you can turn off the power and water source.

5. This unit is equipped with a water strain overheating protection system. When the water shortage indicator is on, the unit is short of water or water volume

Too low; when the overheat indicator is on, the water temperature of the unit is too high. In the above situation, the machine will stop

It is heated and in a protected state.

¢ÙClear water shortage alarm: increase hydraulic pressure

¢ÚClear overheating alarm: cooling water inlet to below 35 degrees Celsius

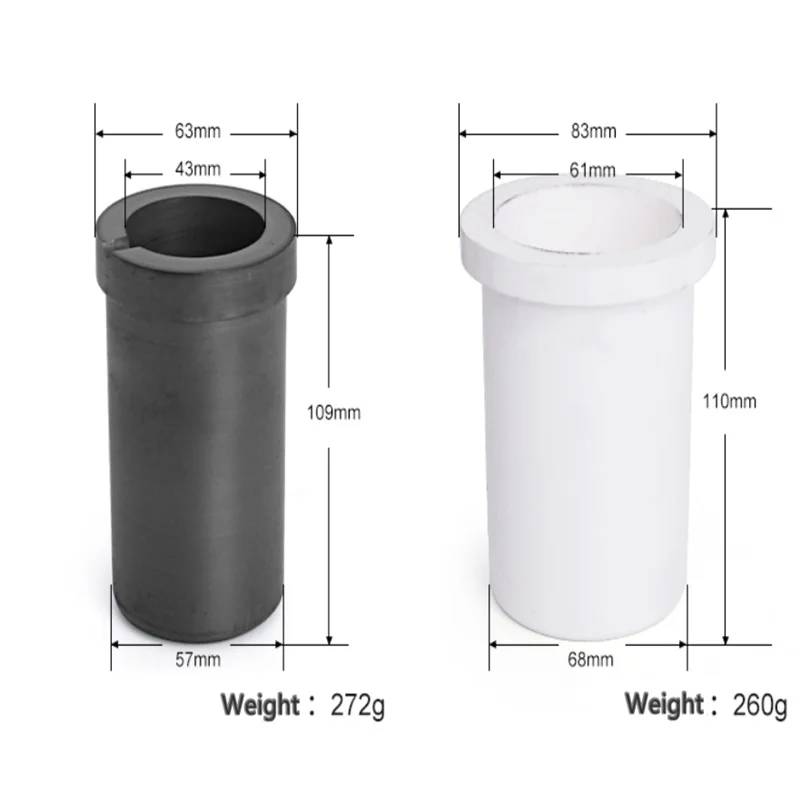

6. Please use our special crucible to melt.
